Eaton Non-Automotive
Fuse Holders

S-8000 Fuse Holder

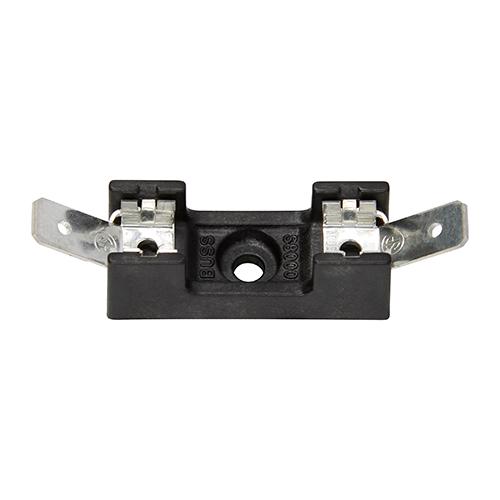

Eaton's S-8000 fuse blocks are for 6 x 32 mm (1/4" x 1-1/4") cartridge/ferrule fuses, rated up to 600 V and 30 A. They are available in single pole configurations with 1/4" wide quick connects, wire solder connections and through hole solder connections.  The S-8000 now is offered in panel mount and new DIN-rail configurations. All products are RoHS compliant.

Fuse Accessory Expansion (HTJ)

Eaton's HTC panel mount fuse holders are for 6 x 32 mm (1/4" x 1-1/4") cartridge/ferrule fuses, rated up to 250 V and 15 A. All HTJ fuse holders are intended for through-panel access, which keeps the fuse externally accessible through an electrical enclosure for ease of fuse replacement upon opening.

Fuse Accessory Expansion (HP)

Automotive AMLV multi-layer varistors are transient voltage surge suppression devices designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 and other standards used for electromagnetic compliance. They are available in a variety of voltage ranges in order to provide high reliability protection in numerous applications on the power supply, control and signal lines.

Fuse Accessory Expansion (HTC)

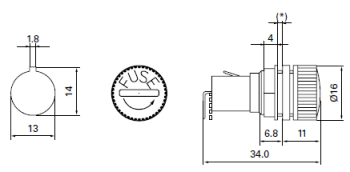

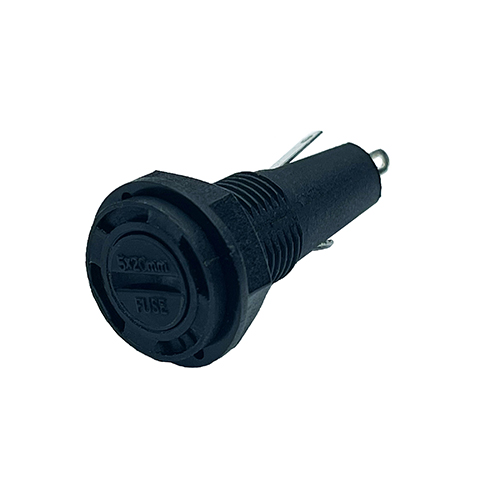

HTC panel mount fuse holders are for 5 x 20 mm cartridge/ferrule fuses, rated up to 250 V and 10 A. All HTC fuse holders are intended for through-panel access, which keeps the fuse externally accessible through an electrical enclosure for ease of fuse replacement upon opening.

Fuse Accessory Expansion (HTC 5x8)

Eaton Bussmann Series 1145HVA fast-acting fuses provide reliable overcurrent protection up to 5A for high voltage applications. This product family is available in surface mount printed circuit board packages in 11 x 4.5 mm footprint. The high voltage ratings and SMD package help reduce required PCB space. The 1145HVA is AEC-Q200 qualified, which is ideally suited for the latest xEV powertrains and applications.

Fuse Accessory Expansion
(S-4000)
